DongWoon Primary Agent DC to DC linear constant current drive IC DW8501

Name: DW8501 Linear Constant Current LED Driver IC
Brand: DONGWOON ANATECH
SKU: DW8501
Availability: InStock
Rating: 4.8 (5 reviews)

Model：: DW8501

Brand：: DongWoon

Batch No：: DW8501-TOJCCT，DW8501-SOJHHT

Desc：: DW8501 is an original linear constant-current LED driver IC manufactured by South Korea DONGWOON. It features 5-40V wide input voltage, up to 1.5A adjustable constant current, ultra-low dropout voltage of 0.3V, built-in thermal derating protection and PWM

Stock：: 80000 PCS

PDF：: 下載數據手冊 Download PDF

Enquiry Quantity：

Topological :	低壓差DC-DC高效率大電流線性恒流
LED serial number :	Vou=Vin-0.5V
Input voltage :	5~40V
Output voltage :	Vou=Vin-0.5V
Efficiency :	97%
Mosfet :	內置MOSfet
Dimming mode :	PWM調光
Current accuracy :	恒流精度3%
Package :	TO252-5L,SOT223-5L
Max. power output :	[email protected]
Max. Output Current :	≤1.5A
Typical applications :	無人駕駛車LOGO燈,無人駕駛汽車大燈,汽車大燈，汽車霧燈，汽車轉向燈,LED洗墻燈，LED燈條，LED舞臺燈，LED臺燈，LED 手電筒、LED 礦燈、植物生長燈、LED 指示燈等
Replacement models :	AMC7140,DD311,SM1506，NU511，AMC7140DLGT，AMC7140DLGT-A，AT7316，
Application description :	TO252-5L封裝最大功耗1.5W,SOT223-5L封裝最大功耗1W
Keywords :	DW8501,DongWoon,DongWoon代理商,DW8501中文資料,DW8501說明書，DW8501規格書

添加到比較列表

Key Parameters Summary: DW8501 is an original linear constant current LED driver IC manufactured by South Korean DONGWOON. It features wide input voltage range of 5~40V, maximum 1.5A constant current output (≤800mA recommended for high PF flicker-free solutions), 0.3V ultra-low dropout voltage and built-in thermal derating protection. It supports PWM dimming and is pin-to-pin compatible with AMC7140/AT7316. We are authorized first-tier distributor with in-stock inventory and competitive pricing for bulk orders.

DW8501 Linear Constant Current Driver Solution for Automotive Lights & Stage Lights | Datasheet & Design Guide

DW8501 is a wide-input linear constant current LED driver IC launched by DONGWOON ANATECH from South Korea. It operates with input voltage from 5V to 40V and delivers maximum output current up to 1.5A, integrating internal MOSFET and thermal derating protection circuits. Packaged in SOT223?5L and TO252?5L, this device can directly replace AMC7140, AT7316 and other mainstream models pin-to-pin. It is highly suitable for applications sensitive to EMI such as automotive headlights, stage lights and wall washers. Equipped with 0.3V ultra-low dropout voltage and PWM dimming function, it effectively reduces power dissipation in 12V/24V systems and improves overall product reliability.

Core Highlights: 5~40V Wide Input Voltage | Max 1.5A Adjustable Constant Current | 0.3V Low Dropout @300mA | Built-in Thermal Derating Protection | PWM Dimming Support | Low EMI Interference | Pin-to-Pin Replacement for AMC7140 | Dual Package Options: SOT223-5L / TO252-5L
※ Note: The maximum output current of the IC is 1.5A. For high power factor (PF>0.9) flicker-free applications, output current ≤800mA is recommended to achieve optimal heat dissipation and service life. It can run at full 1.5A rating for DC direct drive applications with sufficient heat dissipation.

Product Description: DW8501 is available in two package versions: DW8501-TOJCCT (TO252-5L) and DW8501-SOJHHT (SOT223-5L). As a wide voltage (5~40V) linear LED constant current driver with adjustable output current up to 1.5A, it integrates internal MOSFET and thermal derating protection, supporting 0~100% PWM dimming. Only one external resistor is required for circuit configuration with negligible EMI and maximum efficiency up to 97%. It is widely applied in automotive lamps, stage lights, wall washers, LED light bars and other lighting products, and serves as a perfect pin-to-pin substitute for discontinued models like AMC7140 and AT7316.

DW8501 Ordering Information | Package & Packaging Specifications

Part Number	Marking	Package Type	Packaging
DW8501-TOJCCT	DW8501	TO252-5L	2500 pcs/reel
DW8501-SOJHHT	DW8501	SOT223-5L	2500 pcs/reel

Key Features

● Wide input voltage range: 5V~40V, compatible with 12V/24V/36V automotive & lighting systems
● Maximum 1.5A adjustable constant current output, current accuracy ±3%
● Low dropout design: only 0.3V dropout voltage @1A, lower heat generation & higher efficiency
● Built-in thermal derating protection, current automatically reduces under over-temperature to protect IC and LED beads
● High-frequency PWM dimming support, flicker-free and fast response
● Minimal external components, output current set by single resistor, low BOM cost and easy for mass production
● Low EMI performance, easily pass automotive and lighting regulatory compliance tests

Key Electrical Specifications

Parameter	Typical Value	Unit
Input Voltage	5~40	V
Output Current	0~1500	mA
Dropout Voltage	0.3 @300mA	V
Current Regulation Accuracy	±3%	--
Thermal Protection Threshold	140	℃
Dimming Method	PWM	--

Pin Configuration

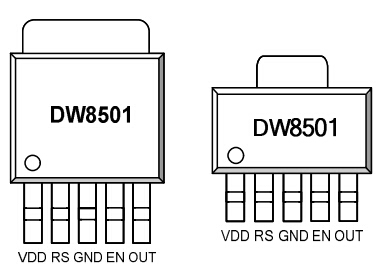

DW8501 TO252-5L Pinout:PIN1-VDD(Power Input), PIN2-RS(Current Setting), PIN3-GND(Ground), PIN4-EN(Enable/PWM Dimming), PIN5-OUT(LED Constant Current Output), PIN6-HS(Heat Sink Pin, Normally Connected to GND)

Pin No.	Pin Name	Function Description
1	VDD	Power Supply Input
2	RS	Output current setting pin, connect external resistor to GND
3	GND	Ground
4	EN	Enable & PWM Dimming Control, active high
5	OUT	LED Constant Current Output
6	HS	Heat Sink Pin, normally connected to GND

Internal Block Diagram

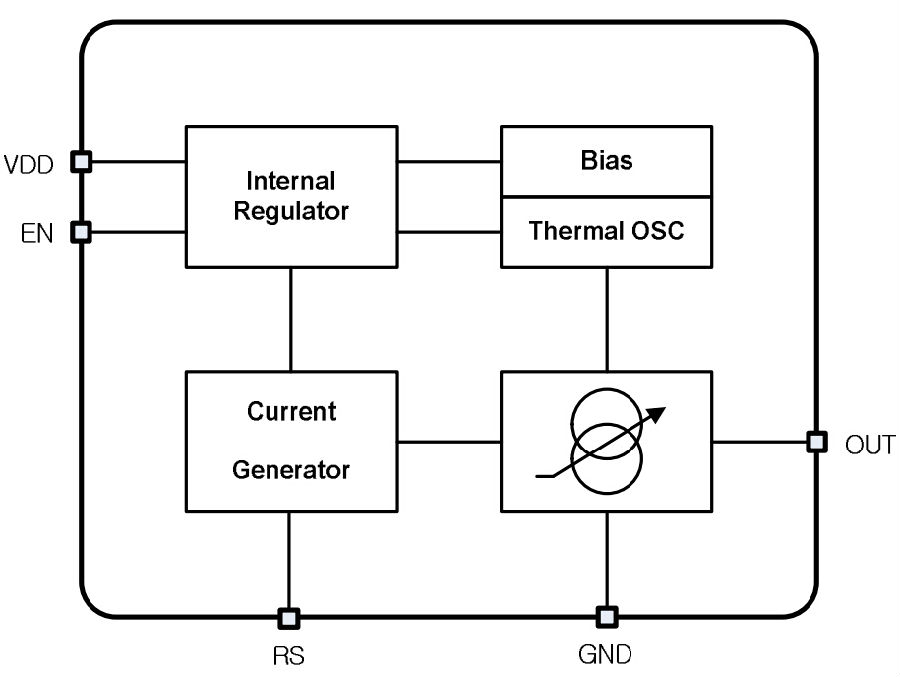

DW8501 Internal Block Diagram:Includes Bandgap Reference, Error Amplifier, Over-Temperature Protection, Current Detection, MOSFET Driver and other modules

Typical Application Circuits

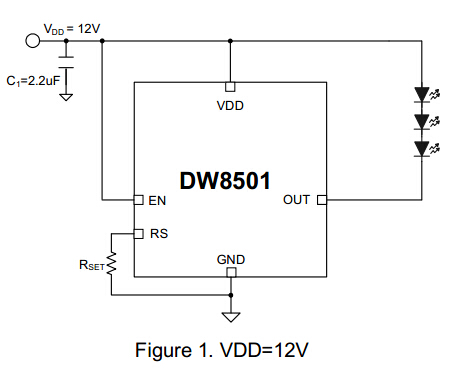

DW8501 Typical Application Circuit:PWM dimming connection, PWM signal input to EN pin, current set by RS resistor

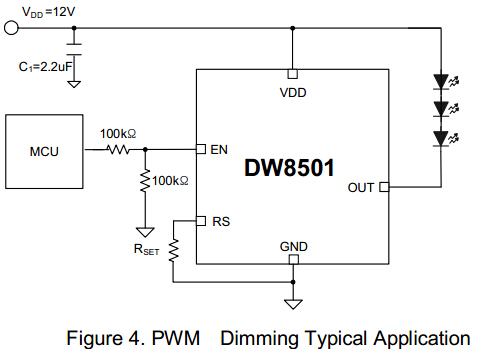

DW8501 Automotive Light Driver Circuit:12V/24V input, multiple LEDs in series, PWM dimming for stepless brightness adjustment

The circuits above show typical connection of DW8501 for automotive headlights. The LED operating current is configured via RS resistor, and stepless dimming is realized by feeding PWM signal to EN pin. No external MOSFET is required with extremely few peripheral components, which greatly reduces system cost.

Applications

● Automotive Headlights, Fog Lights, Turn Signal Lights, Logo Lights, Welcome Lights
● LED Wall Washers, Stage Lights, Flood Lights, Linear Lights
● LED Light Bars, Advertising Light Boxes, LED Modules, Panel Lights
● Flashlights, Desk Lamps, Mining Lamps, Grow Lights
● Autonomous Vehicle Lamps, Automotive Interior Lights
● General Constant Current Source, DC/DC Current Regulator Matching

DONGWOON Linear Constant Current Driver Solution Selection

Model / Parameter	DW8501	DW8502	DW8505A	DW8506	DW8506A	DW3505A
Input Voltage(V)	5~40V	5~40V	5~40V	6.5~40V	6.5~40V	5~40V
Output Current	≤1.5A Adjustable	≤2.5A Adjustable	≤100mA Adjustable	≤100mA Adjustable	Fixed 60mA	≤300mA Adjustable
Dropout Voltage	0.3V @300mA	1V @1A	0.1V @60mA	0.5V @50mA	0.6V @60mA	0.2V @60mA
Dimming	PWM	PWM	PWM	—	—	PWM
Protection	Thermal Derating	Thermal Derating	Thermal Derating	Thermal Derating	Thermal Derating	Thermal Derating
Package	SOT223-5L TO252-5L	TO263-5L TO220-5L	SOT23-5L	SOT23-5L	WLCSP	SOT-89-5L

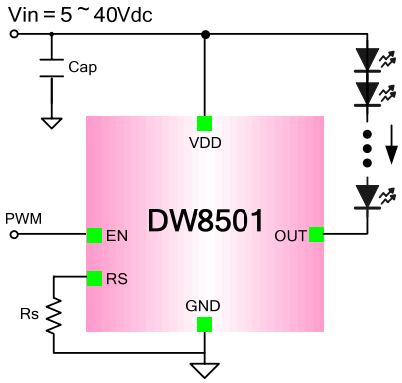

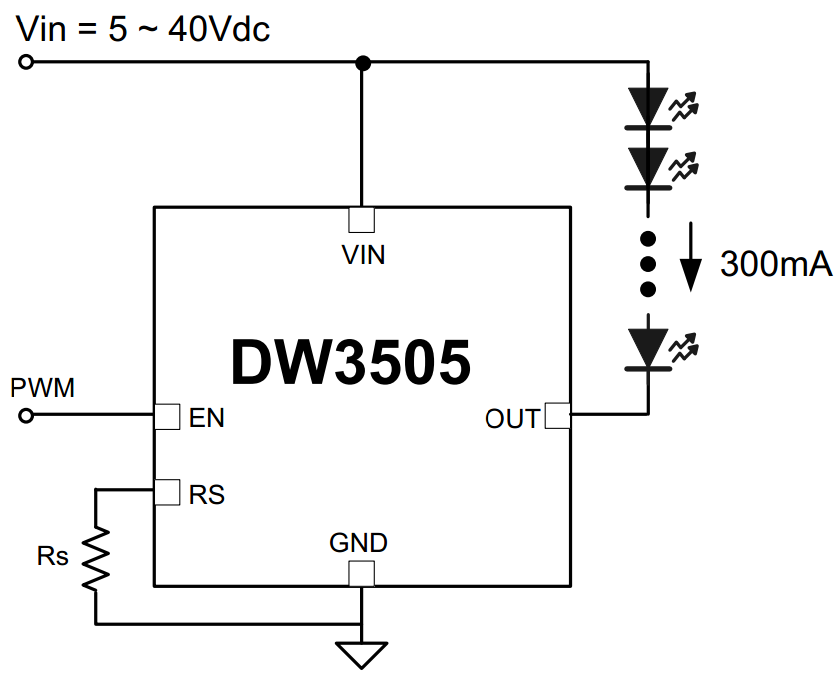

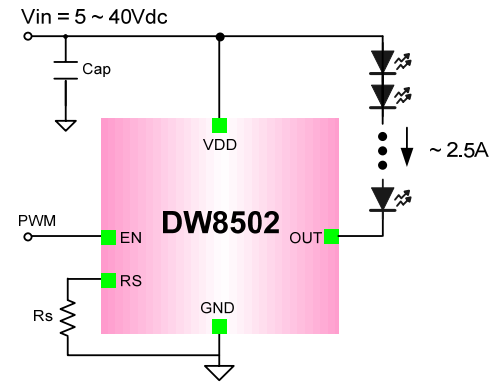

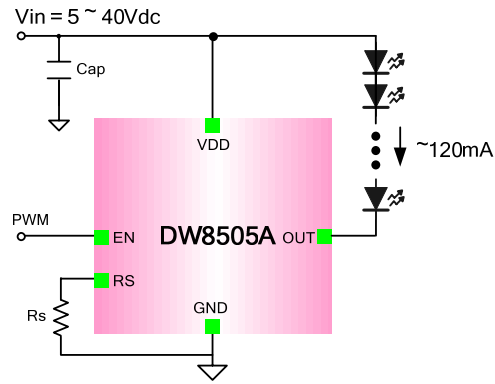

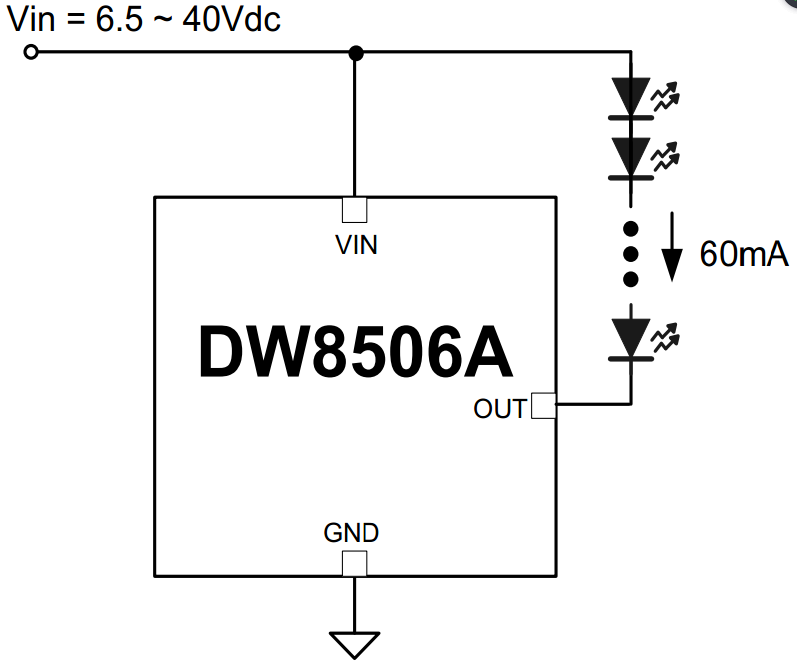

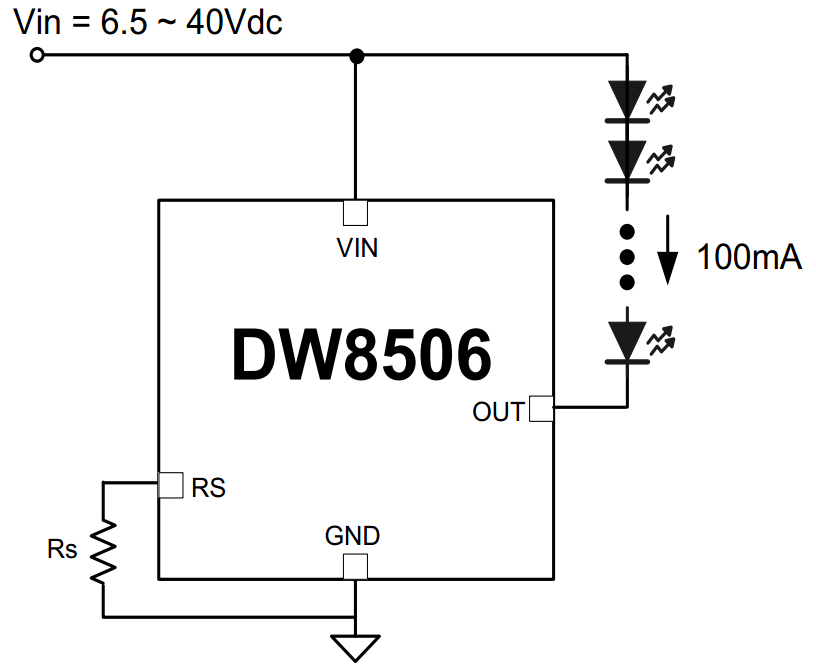

Typical Circuit

Compatible Replacement Models & Competitive Advantages

This IC can be used as a direct pin-to-pin replacement for the following parts: AMC7140, AMC7140DLGT, AMC7140DLGT-A, AT7316, AT7316T, DD311, SM1506, NU511.

● Advantage 1: Wider input voltage range (5~40V), no PCB modification required for existing designs
● Advantage 2: Lower dropout voltage, less heat generation and higher working efficiency
● Advantage 3: Built-in thermal derating protection, which is not equipped on most competing products
● Advantage 4: Stable original manufacturer supply, free from stock shortage and EOL issues
● Advantage 5: PWM dimming supported for flicker-free performance, ideal for automotive and general lighting applications

Authorized Distributor & Service Support

GS-Micro Semiconductor (Shenzhen) Co., Ltd. is an officially authorized first-tier distributor of DONGWOON ANATECH from South Korea. We focus on mixed-signal ICs and power management solutions, being a leading supplier of linear constant current LED driver ICs in China. We distribute full series of DONGWOON products including DW8501, DW8502, DW8505A, providing high-reliability LED driving solutions for automotive lights, stage lights, wall washers and other industries. Warehouses are located in Shenzhen, Shanghai and Beijing for fast delivery across China and overseas markets.

Frequently Asked Questions (FAQ)

Can DW8501 directly replace AMC7140?

Yes. DW8501 is fully pin-to-pin compatible with AMC7140. It supports wider input voltage from 5~40V, so you can conduct direct replacement without any PCB changes.

What is the maximum output current of DW8501? Is an external MOSFET needed?

The IC can output constant current up to 1.5A maximum. Internal MOSFET is integrated, so no external power MOSFET is required. Only one current setting resistor is needed for application. For high PF flicker-free solutions, operating current ≤800mA is recommended.

Does this IC comply with AEC-Q100 standard?

DW8501 is designed in compliance with AEC-Q100 Grade X criteria, suitable for automotive electronic applications that require high reliability.

How to request samples or get bulk quotation?

Please contact our sales team via phone: +86 18018703531 (He Long), or send email to [email protected]. We will provide product samples, technical support and competitive bulk pricing.

Procurement | Sample Request | Technical Support | Solution Development

Sales Hotline: +86 18018703531 (Contact: He Long)

Business WhatsApp/WeChat: gsmicro_semi (Remark: DW8501)

Email: [email protected]

Official Website: huimai2.com

Business Hours: Monday - Friday, 9:00 - 18:00 (GMT+8)

DW8501 Application Benefits & Operating Conditions.pdf

DW8501 has been widely adopted in automotive lighting applications, including LOGO lights, headlights, fog lights, turn signals, and indicator lights. It is widely used in GAC Honda welcome lights and LOGO lights. In the autonomous vehicle sector, DW8501 is applied in LOGO lights for SF Express and Meituan autonomous delivery vehicles.

DW8501 is a high-power LED constant current driver with 5V~40V input voltage and up to 1500mA output current, suitable for 1W, 3W, 5W LEDs. It features an EN pin for PWM dimming. Efficiency exceeds 95% when input and output voltages are close. The peripheral circuit is simple, with only one resistor setting the output current. It offers 5% current accuracy, built-in thermal protection, PWM dimming, and is available in TO-252-5L and SOT223-5L packages.

Pin 1: Power input; Pin 2: Current setting via external resistor Rset (Iout[mA] = (610[mV]/Rset[Ω])×1000); Pin 3: GND; Pin 4: PWM control (active high); Pin 5: Output.

DW8501 Pinout Diagram DW8501 Package Pin Configuration Replace AT7316 AMC7140 DD311 NU511

Figure 1 DW8501 Pin Configuration

DW8501 Application Schematic PWM Dimming Automotive LED Driver Circuit

Figure 2 DW8501 Application Schematic

DW8501 Features

Dropout voltage: 0.5V at 0.7A output current

Maximum output current: 0.7A

Output current adjustable via a single external resistor

Enable response time: 3μs

Wide input voltage range: 5V~40V

Output voltage withstand: 23V

Package: TO252-5L, SOT223-5L

DW8501 Typical Applications

LED spotlights, automotive lighting, street lamps, desk lamps

RGB LED drivers

LCD monitors, LED TV backlight drivers

LED strips, wall washers, floodlights, stage lights

DW8501 Advantages & Application Conditions

DW8501 Advantages:

Efficiency over 95% when AC/DC output is close to total LED Vf

Minimal components, low BOM cost, simple PCB layout

Single wiring per string, easy assembly

VDD withstand 41V, output withstand 23V; TO252-5L low dropout & high reliability

EN pin for protection; Iset pin for current adjustment with temp/photocoupler

Application Conditions:

LED Vf should be sorted to narrow voltage range

Set output voltage = max total LED Vf + 0.5Vdrop

Series resistor between Vdc and VDD for surge protection; EN soft-start cap

Ensure good heat dissipation; keep IC heat sink temperature below 60℃

High PF Flicker-Free PWM Dimming Solution

DW8528B+DW8501.zip

<60W High PF Flicker-Free Solution: DW8528B+DW8501

<100W High PF Flicker-Free Solution: DW8528B+DW8502

DW8501 Flicker-Free Circuit DW8501 Anti-Flicker PWM Dimming Solution

DW8528B&DW8501 Electrical Specifications

1. Input Parameters

Nominal input voltage: 100Vac~240Vac

Input range: 90Vac~264Vac

Frequency: 47Hz~63Hz

2. Output Parameters

Min output voltage: 40V

Max output voltage: 46V

Output current: 0.78A

3. Performance Parameters

Max output power: 36W

Standby power: <0.5W@240Vac/50Hz no-load

Line regulation: ±1%

Load regulation: ±3%

Output ripple: <5% at full load after 10min

4. Protection Features

Short-circuit protection: auto-recovery

Open-circuit protection: auto-recovery

DW8501 Datasheet DongWoon Distributor DW8501 PDF Linear Constant Current Driver IC

Keywords & Replacement Models

Keywords: DC/DC Linear Constant Current Driver, DW8501, DongWoon, DongWoon Distributor, DW8501 Datasheet, DW8501 PDF, Linear Constant Current IC

DW8501 PIN-TO-PIN Replacement for discontinued models: AMC7140, AMC7140DLGT, AMC7140DLGT-A, AT7316, AT7316T
