JYM27270 Full-Polarity to Unipolar Low-Power Hall Effect Switch Sensor with Memory Function
The JYM27270 is a high-sensitivity, low-power, memory-equipped Hall-effect switch chip introduced by Guangshen Microelectronics. Fabricated using 0.18μm BCDMOS technology, it supports a wide operating voltage range of 1.65V to 5.5V with an average current as low as 1μA, making it suitable for low-power magnetic field detection applications in consumer electronics, smart homes, portable devices, and similar scenarios.
Core Product Advantages
● Full pole to single pole memory function, locked after power on to identify polarity, stronger anti-interference ability
● Micro power design, with an average operating current of only 1.0 μ A at 3.3V in the 5Hz version
● Wide voltage range of 1.65V~5.5V, suitable for battery powered equipment
● High sensitivity Bop=30Gs, BRP=20Gs, built-in temperature compensation
● ESD ± 6kV, push-pull/open drain dual output optional

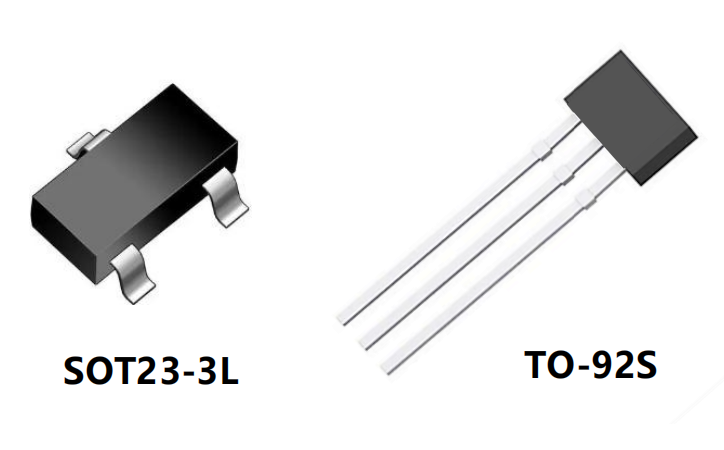

● Compact SOT23-3L and TO-92S packaging, compliant with RoHS
Key parameter table
| parameter | symbol | typical value | unit |
|---|
| Operating voltage | VCC | 1.65~5.5 | V |
| Average working current(5Hz) | ICC | 1.0 | μA |
| Operating point | Bop | 30 | Gs |
| Brp | BRP | 20 | Gs |
| BHYS | BHYS | 10 | Gs |
| ESD | VESD | ±6 | kV |
| Operating Temperature | TA | -40~85 | ℃ |

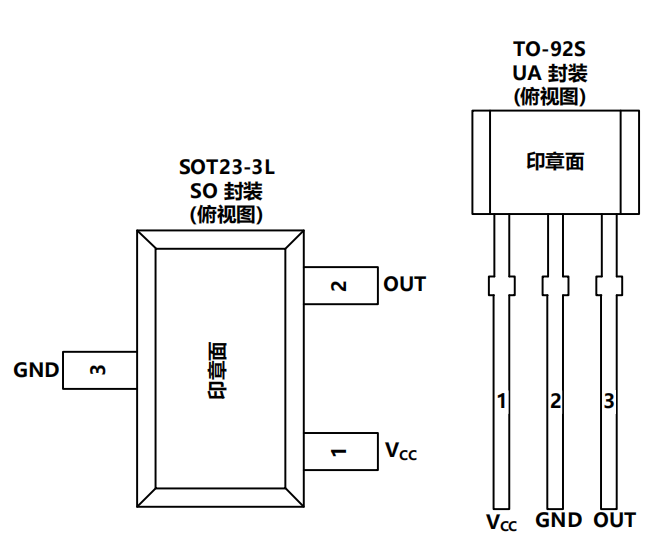

Pin definition
SOT23-3L(SO)：1 Pin VCC，2 Pin OUT，3 Pin GND
TO-92S(UA)：1Pin VCC，2Pin GND，3Pin OUT
VCC：power input，1.65V~5.5V；GND：GND Ground；OUT：signal output
Package size
SOT23-3L：long 3.0mm，wide 2.8mm，Pin pitchg 1.7mm
TO-92S：total length 15.5mm，Chip package diameter 2.57mm，pin pitch 1.3mm

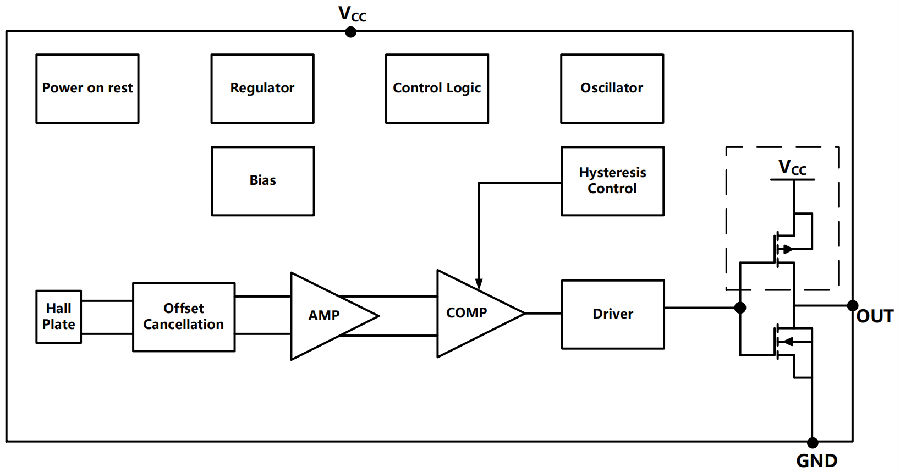

SIMPLIFIED BLOCK DIAGRAM AND TYPICAL APPLICATIONS
SIMPLIFIED BLOCK DIAGRAM：Power-on reset → Voltage stabilization → Control logic → Oscillation → Bias → Hall board → Amplification comparison → Output drive
Push-pull output application: VCC connected to power supply, OUT directly connected to main control, GND grounded, and connected in parallel with a 0.1μF decoupling capacitor
Open-drain application: OUT is externally connected to a 1~10kΩ pull-up resistor, and the rest is the same as the push-pull circuit
Application scenarios
Smartphones, tablet computers, laptops, digital cameras
Toys, game consoles, household appliances, solid-state switches
Low-power portable devices, battery-powered detection devices

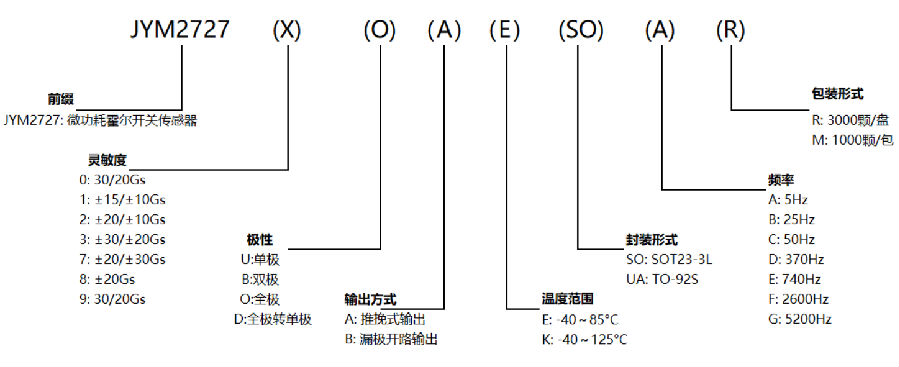

Order Information
JYM27270DAESOAR：SOT23-3L，push-pull，5Hz，3000 Pieces/Volume
JYM27270DBESOAR：SOT23-3L，open drain，5Hz，3000 Pieces/Volume
JYM27270DAEUAAM：TO-92S，push-pull，5Hz，1000 Pieces/Volume
JYM27270DBEUAAM：TO-92S，open drain，5Hz，1000 Pieces/Volume
Replacement and advantage comparison of similar products
Replaceable：AH277、TMR1202、DRV5032、A3212 Etc Single-pole/full-pole Hall switch
Advantage 1: Unique full-pole to single-pole memory function, with polarity locking for better anti-interference
Advantage 2: 1.65V low-voltage startup, more suitable for coin cell battery power supply
Advantage 3: With an average current of 1μA, its power consumption is lower than that of most similar models on the market
Advantage 4: Built-in temperature compensation ensures stable parameters across the entire temperature range
Advantage 5: Dual-package and dual-output, adapting to more structures and circuits
JYM27270 Typical Applications
The JYM27270, a full-pole to single-pole micro-power Hall switch sensor with memory function, is widely used in low-power magnetic field detection, magnetic attraction sensing, position detection, and non-contact switching scenarios. It features a simple circuit, strong stability, and is suitable for battery-powered devices.

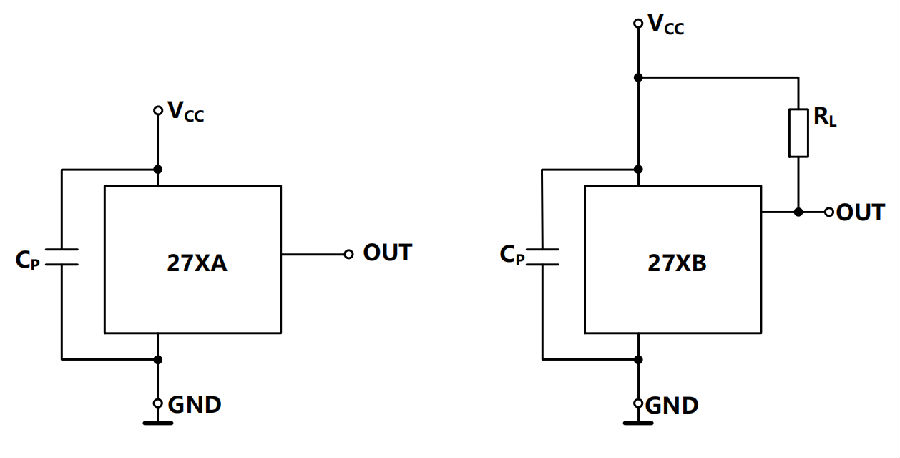

Typical application circuit
Push-pull output application: Connect VCC to a power supply ranging from 1.65V to 5.5V, ground GND, directly connect OUT to the main control IO port, and connect a 0.1μF decoupling capacitor in parallel between VCC and GND. No pull-up resistor is required, making the design simple and reliable.
Open-drain application: Connect VCC to a power supply ranging from 1.65V to 5.5V, ground GND, externally connect a 1kΩ to 10kΩ pull-up resistor to OUT, and connect a 0.1μF decoupling capacitor in parallel between VCC and GND. This configuration is suitable for multi-level systems and long-distance transmission.
Typical application scenarios
Magnetic opening and closing detection and sleep-wake-up for smartphones, tablet computers, and laptops
Low-power location sensing and non-contact switching for digital cameras and handheld devices
Magnetic field triggering, motion sensing, and counting detection for toys and game consoles
Magnetic door locks, flip detection, touch sensing, and solid-state switches for household appliances
Battery-powered portable devices, low-power meters, and IoT terminal magnetic field detection
Overview of typical application parameters
| Application Project | Typical parameters |
|---|
| Operating Voltage | 1.65V~5.5V |
| Average operating current | 1.0μA（3.3V/5Hz） |
| Magnetic operating point | 30Gs |
| BRP | 20Gs |
| Output method | Push-pull/open-drain |
| Operating Temperature | -40℃~85℃ |
| Package form | SOT23-3L / TO-92S |
Typical application advantages
Fully-pole power-on induction, memory lock for single pole, and stronger anti-interference capability
Low-power design, long battery life, suitable for battery-powered products
Wide voltage operation, compatible with systems at 1.8V/2.5V/3.3V/5V
High sensitivity and temperature compensation, with stable and consistent performance across the entire temperature range
Small package, suitable for compact structures and portable device installation
