XLSEMI Primary Agent DC to DC Buck constant current drive IC XL8001

Model：
XL8001
Brand：
XLSEMI
Batch No：
2013
Desc：
80V 0.5A High Efficiency Buck PFM LED Constant Current Driver XL8001E1
Stock：
1490 PCS
PDF：
下載數據手冊 Download PDF
Enquiry Quantity：
Current accuracy : 3%

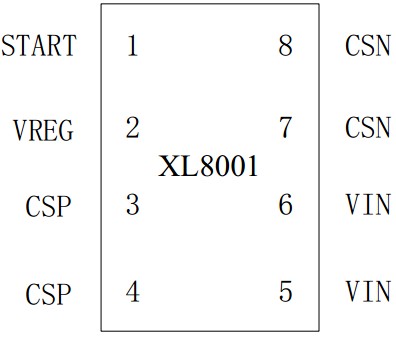

Package : SOP8
Topological : 降壓（BUCK）
LED serial number : 1~18顆 LED串聯(<=8W)
Dimming mode : PWM（通過4148加到CSN腳，頻率60~200Hz）
Switching frequency : PFM
Mosfet : 內置0.5A MOS管
Efficiency : 97%
Max. power output : 降壓恒流輸出 0~8W
Max. Output Current : 500mA
Output voltage : 0~60V
Input voltage : 12~80V
Typical applications : LED機車燈，LED摩托車燈，LED汽車燈，以及其它高輸入電壓驅動的LED照明產品
Replacement models : XL8002,LM3404HV
