Your location > Home > Product > DW8522
For Your Information,References Product Description.

DongWoon Primary Agent DC to DC Buck constant current drive IC DW8522

Model：
DW8522
Brand：
DongWoon
Batch No：
DW8522,DW8522-T,DW8522-S,MAX16820
Desc：
Automobile internal/external lighting step-down type high brightness LED drive, with high current, current ripple, quick response and PWM dimming, simulate the dimmer
Stock：
0 只
PDF：
下載數據手冊 Download PDF
Enquiry Quantity：

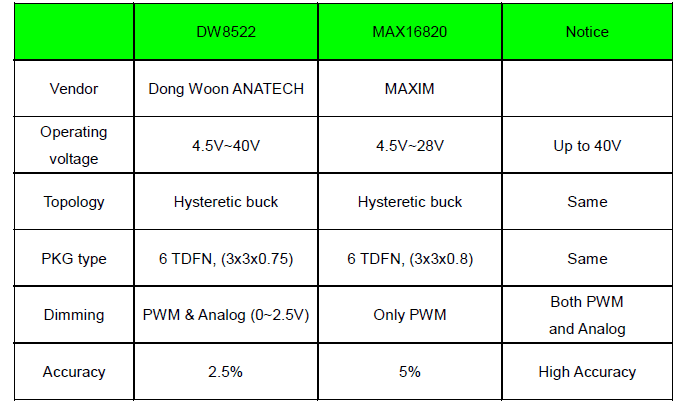

Replacement models : 美信MAX16820,美信MAX16819

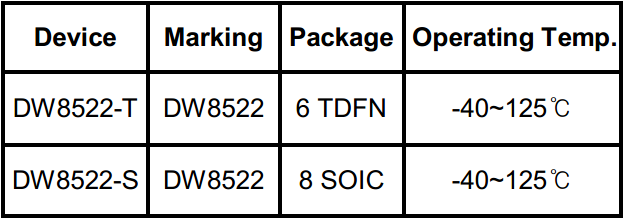

Package : 6TDFN,SOIC-8
Topological : 開關式降壓型高端電流檢測（外置MOS）
LED serial number : 1~10串
Dimming mode : PWM調光（0~100%調光），模擬調光
Switching frequency : 2MHz
Current accuracy : ±2.5%
Mosfet : 外置功率MOSfet
Efficiency : 96%
Max. power output : 50W
Max. Output Current : 3A
Output voltage : 0~36V
Input voltage : 4.5V~40V
Typical applications : 汽車內部/外部照明、建筑和環境照明、MR16射燈， LED燈泡，其他LED照明應用
添加到比較列表
[ Anonymous User ] 2018-01-30 16:29:18
來自韓國DONGWOON品牌的DW8522-T是降壓恒流高亮度LED驅動器，高恒流精度的驅動芯片，采用小體積封裝6 TDFN（尺寸3mm*3mm*0.75mm）,可完全兼容替換美信MAX16819、MAX16820，且恒流精度更高，更具成本優勢。為汽車內部/外部照明，建筑和環境照明，LED燈泡如MR6和其它LED照明產品提供具有成本效益的解決方案
